· Arca-Swiss quick-release plates for quick switch between horizontal and vertical modes;

· Hinge arm at the battery door gives access to battery door and enhances grip experience;

· Arca-Swiss quick-release plate supports Arca-type tripods or DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro stabilizers;

· Accessory mounting points: 1/4"-20 threaded hole, QD socket, etc.;

· Stretchable side plate allows cables through in vertical shooting;

· Built-in magnetic wrench for easy disassembly and assembly.

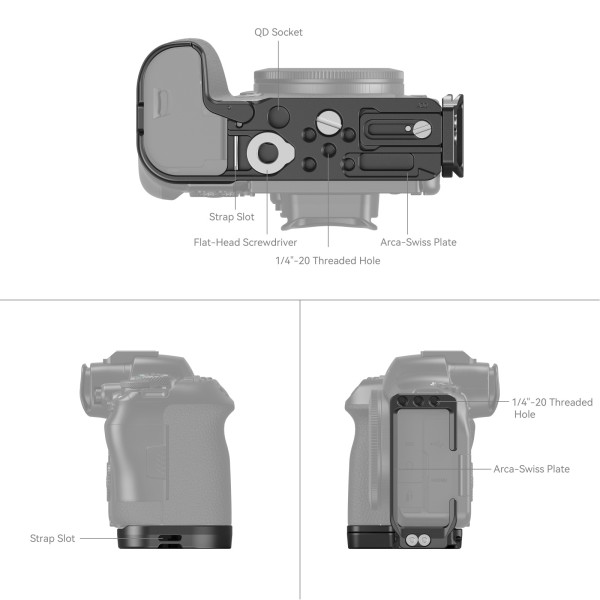

SmallRig L-Bracket for Canon EOS R6 Mark II / R5 / R5 C / R6 4160B is designed to facilitate switch between horizontal and vertical modes, and to improve grip experience. It locks camera via one 1/4 "-20 screw at the bottom and two locating pins, with rubber pads preventing scratches, and has a hinge arm at the battery door that fits camera curve to enhance grip. There are multiple accessory mounts: an Arca-Swiss quick-release plate for Arca-type tripods or DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro stabilizers, 1/4 "-20 threaded holes at the bottom that support Side Handle 2093 & 3847 for vertical handheld shooting, Quick Release Plate 1280, and strap holes for Hand Strap 3848 & 2456. The plate also features a QD socket to attach the Quick Disconnect System for shoulder strap, 1/4"-20 threaded holes, suitable for Cold Shoe Mount BUC2736 for microphone, as well as a stretchable side plate that allows cables through in vertical shooting and 90-degree rotation of the flip screen with the notch design. Besides, a magnetic wrench is included for easy disassembly and assembly.

Compatibility

Canon EOS R6 Mark II / EOS R5 / EOS R5 C / EOS R6

In the Box:

1 x L Bracket Base Plate

1 x L Bracket Side Plate

1 x Allen Wrench

1 x User Manual

Specifications

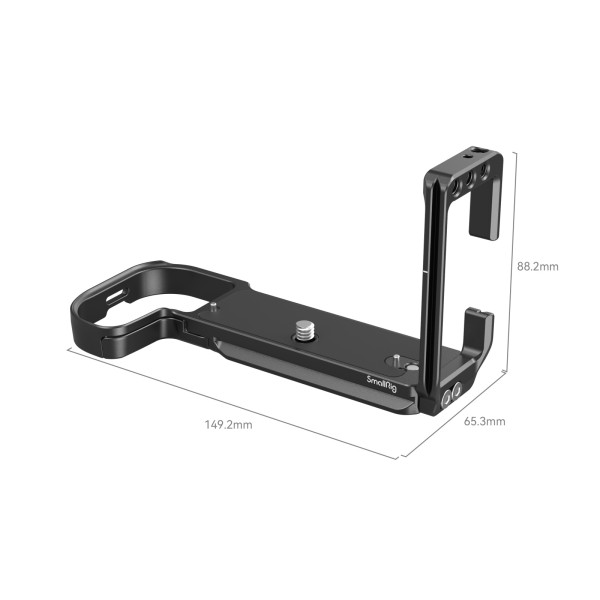

Product Dimensions: 149.2 x 65.3 x 88.2mm

Package Dimensions: 180 x 129.5 x 75mm

Product Weight: 120g±5g

Package Weight: 197.5g±5g

Material(s): Aluminum Alloy
